1.‌ Feeding and compression of vertical ring die pellet machine‌: wood sawdust enter the machine through the feed port, driven by the power system, into the granulation chamber. In the pelleting chamber, the raw material is subjected to high pressure and forced through a hole in the ring chamber.

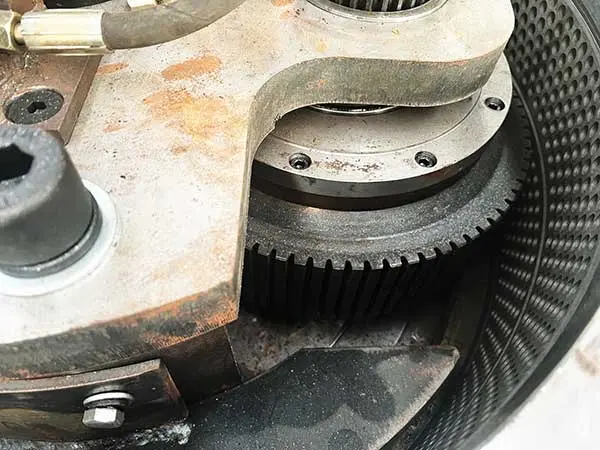

2.‌ Vertical ring die pellet machine: In the ring mold room, raw materials under the action of high pressure and high temperature to form regular wood particles. This process is similar to a physical change or appropriate chemical reaction, prompting the powdery material to form an ever-lengthening cylindrical solid body until it is cut by the cutter to form a certain size of particles.
3. Vertical ring die pellet machine‌ cooling and discharging: the formed particles are cooled and discharged from the discharge port‌.
4. Vertical ring die pellet machine is mainly composed of the following parts:
‌feed inlet: the entrance for raw materials into the machine.
pellet chamber: compression area of materials.
ring molding room: the area where the material is formed.
power system: drives the machine to operate.
outlet: outlet for particle discharge‌.
5.‌ Vertical ring die pellet machine performance characteristics and application scenarios: ‌ vertical ring mould pellet machine is mainly used for furniture factory, plywood factory generated waste utilization, production of biomass pellets to obtain profits. Biomass pellets can be used in power plants, boiler combustion, canteens and so on.
6. Advantages of Vertical ring die pellet machine include:
High production efficiency: capable of continuous operation.
good particle quality: The production of particles uniform size, high density, good quality.
compact design: the equipment covers a small area, easy to operate and maintain.
Vertical ring mould granulator is suitable for all kinds of biomass particles manufacturing, such as wood chips, straw, straw, palm silk, coconut silk, peanut shell and so on.
