Product Features
Vertical Ring Die Pellet Machine
Main performance and features
1.Vertical feed and directly in place.
2.Die static,the roller rotating,and material is centrifugal ,evenly around.
3.Double layers die,up and down dual use,cost efficiency,and also dual-uses,high energy saving.
4.Ring die,vertical structure ,in favor of the thermal cooling of granulation chamber
5.Separate discharge device,ensure the forming rate of pellets.
6.24hours working with automatic lubrication.

1. The lubrication part required by the machine is circularly lubricated with heavy load gear oil. With built-in circulating cold tank, reduce the cost, the equipment can achieve a long time stable operation. The equipment itself is designed with oil pressure alarm device, which is convenient for user maintenance and increases the service life of equipment accessories. Power input: motor high-speed shaft and gear shaft parallel gear transmission, gear shaft two points support rotation, transmission stability, power saving. 5. Power output: drive output is integrated with the spindle, abandoning the limited connection form, increasing the strength. 6. Spindle strengthening: the diameter of the spindle is increased, the spindle is shortened, and the stiffness is increased, which can reduce the wear of the mold and the press wheel. 7. Adopt parallel axis five hard tooth surface helical gear deceleration, gear width, modulus increase, increase the transmission efficiency.

Applicable raw materials
Applicable raw material Sawedust, wood shaving, Coconut shell, EFB fiber, Palm silk, rice husk, straw, peanut shell, corn stalk.

Related accessories
We can also provide related accessories such as wood pellet spare part, wood pellet machine ring die, biomass pellet machine roller and wood pellet machine accessories.

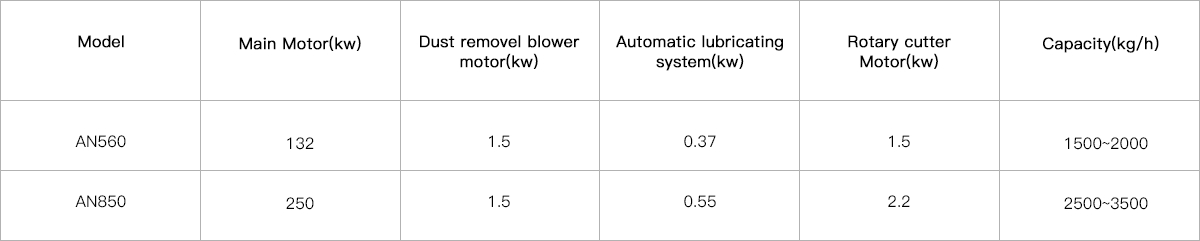

Model
